Fan Filter Units for ISO Cleanrooms: How to Choose the Right FFU

Maintaining ISO compliance in a cleanroom requires careful control of airflow and particulate levels. Fan filter units (FFUs) are one of the most critical components in achieving the necessary cleanroom performance. They ensure that filtered air consistently enters the space, meeting the necessary ISO requirements for the application.

If you’re designing or upgrading a modular cleanroom, understanding how FFUs work and how to select the right one for your clean environment is essential.

What Are Fan Filter Units?

A fan filter unit is a self-contained, motorized filtration module that:

1. Draws air in from the surrounding environment
2. Passes it through a pre-filter and a HEPA, ULPA or PTFE filter
3. Distributes clean, filtered air into the cleanroom

Mounted in the ceiling grid of a modular cleanroom, FFUs work individually or as part of a larger airflow system. This modular approach makes it easier to scale airflow capacity, meet specific ISO class standards, and maintain even air distribution.

Why FFUs Are Critical for ISO Cleanroom Compliance

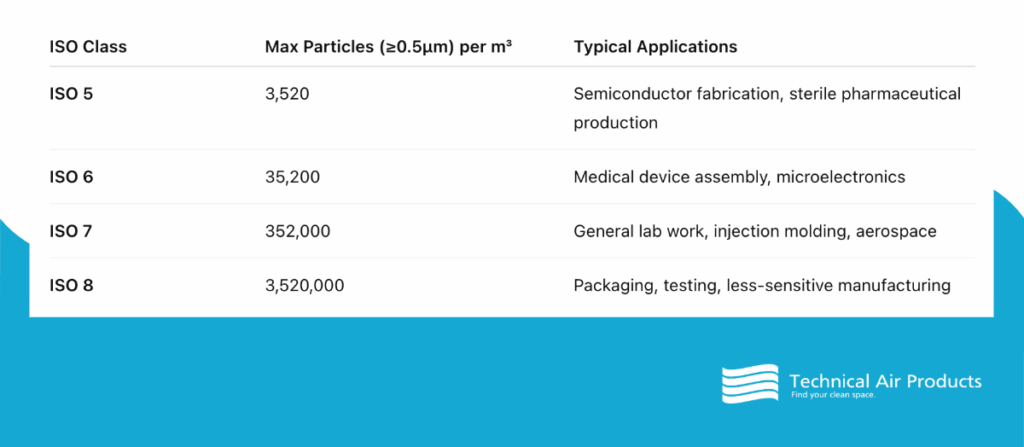

Cleanrooms are classified according to ISO 14644-1, which specifies the maximum allowable particle concentrations for each class. For example:

To meet these standards, the cleanroom must maintain:

• Required air changes per hour (ACH), depending on the ISO class
• Consistent filtration performance over time
• Laminar or uniform airflow (for ISO 4–5)

FFUs make this possible by providing modular, targeted airflow that can be scaled up or down depending on ISO class needs.

Selecting the Right Fan Filter Unit for ISO 4–8 Cleanrooms

Choosing the correct FFU depends on:

• Target ISO class
• Airflow requirements (CFM and air changes per hour)
• Energy efficiency needs
• Control preferences (manual vs. automated airflow)

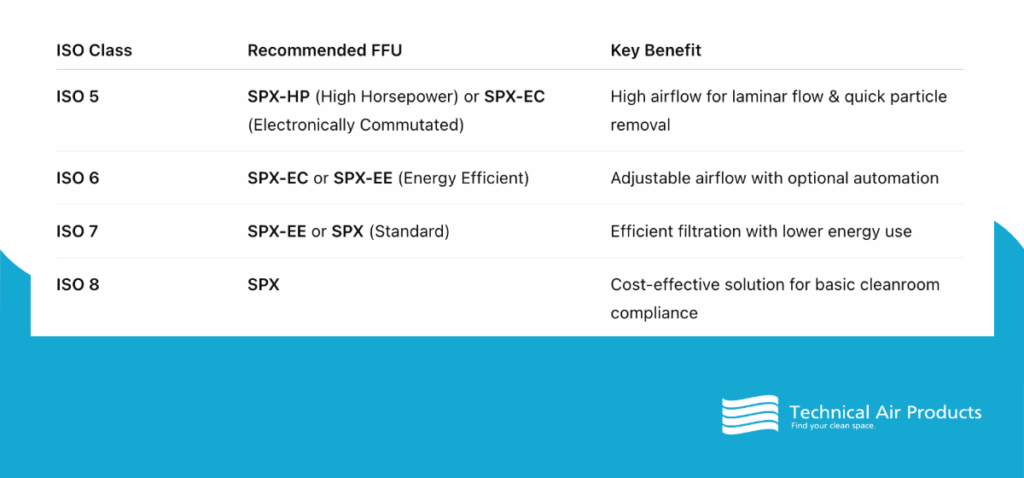

Here’s a selection guide for Technical Air Products’ FFUs:

Tip: For cleanrooms operating 24/7, energy-efficient or EC motor FFUs can significantly reduce long-term utility costs while maintaining ISO compliance.

HEPA vs. ULPA: Which Filter Do You Need?

FFUs typically include either:

• HEPA Filters (99.99% @ 0.3µm) – Sufficient for ISO 5-8 cleanrooms
• ULPA Filters (99.9995% @ 0.12µm) – Recommended for ISO 4 and critical applications

Selecting the correct filter depends on your ISO classification and industry regulations (for example, USP 797 for pharmaceutical compounding).

Room-side Replaceable Options for Easy Maintenance

When planning a cleanroom, maintenance accessibility is just as important as initial performance. Technical Air Products offers:

• Room-side Replaceable (RSR) FFUs – Allow you to replace the HEPA or ULPA filters from inside the cleanroom without removing the unit from the ceiling grid.
• Room-side Replaceable Everything (RSRE) FFUs – Provide access to all serviceable components from within the cleanroom, including motor and controls.

These options are particularly valuable in:

• High ISO classifications (ISO 4-6) where minimizing downtime is critical
• Facilities with frequent recertification requirements
• Cleanrooms with limited ceiling access

Choosing RSR or RSRE FFUs reduces the need to breach the cleanroom ceiling, protecting your contamination control efforts while simplifying maintenance.

Best Practices for FFU Placement

To ensure ISO compliance:

1. Map airflow for full coverage – Avoid corners or “dead zones”
2. Use laminar flow patterns for ISO 4-5 spaces
3. Regularly test and certify to maintain airflow and particle performance

Adding FFUs strategically across the ceiling grid allows your modular cleanroom to scale and adapt to changing requirements.

The Right Fan Filter Units for ISO Cleanrooms

The right fan filter units for ISO cleanrooms are the key to achieving and maintaining certification while protecting your products and processes. By selecting FFUs based on your ISO class, airflow needs, and energy goals, you can ensure your modular cleanroom performs reliably for years to come.

Technical Air Products manufactures a full range of FFUs designed for ISO 4–8 compliance, including standard, energy-efficient, EC motor, and high-horsepower models. Each is engineered to deliver consistent, certified cleanroom performance.
